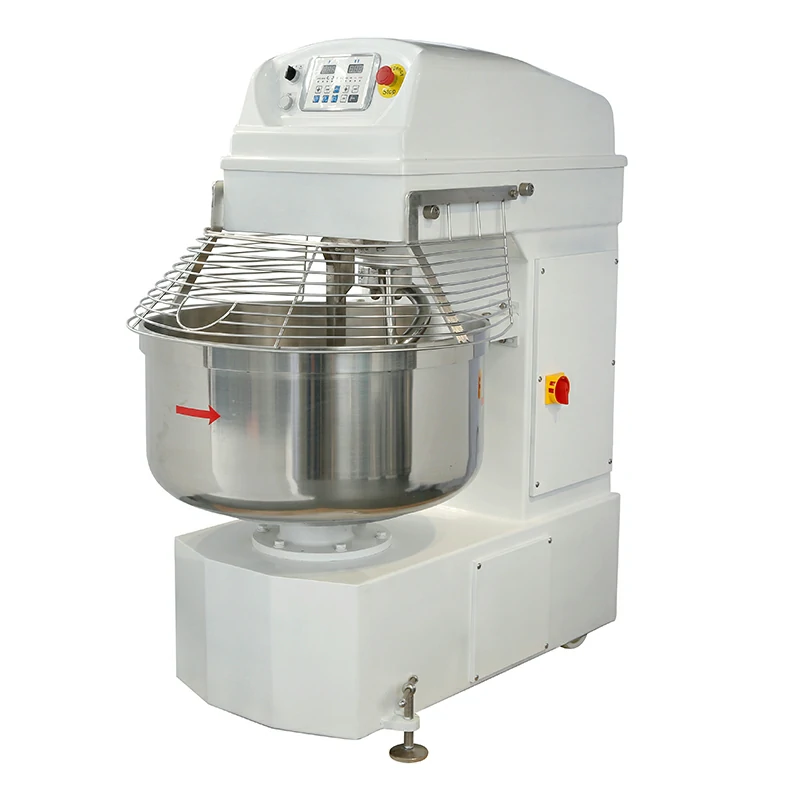

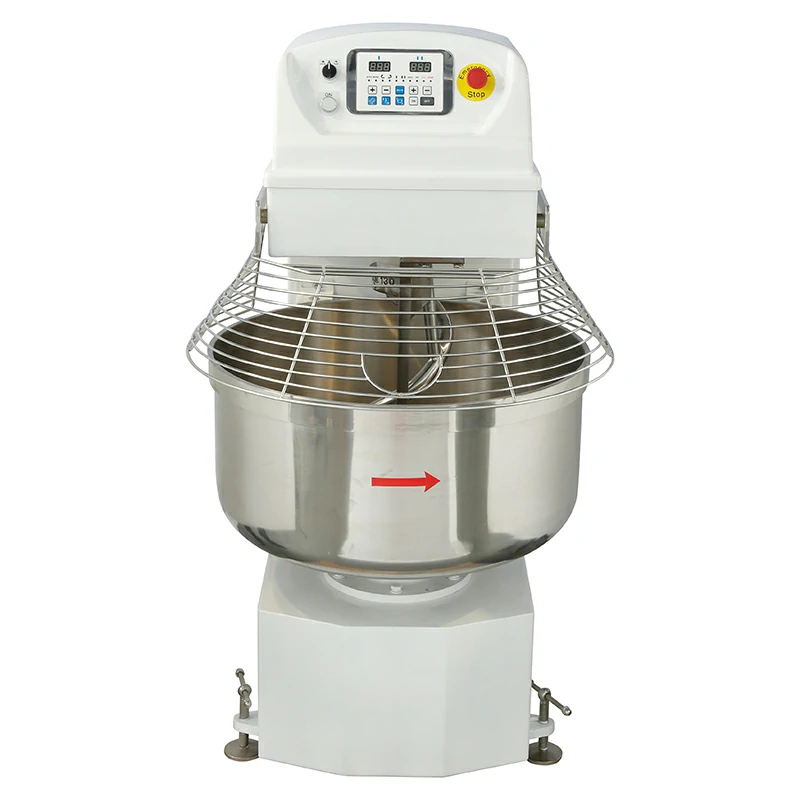

Model: DIGITAL PANEL DOUGH MIXER DUAL-MOTOR
This dual-motion digital control dough mixer is the upgraded version of our classic dual-motor series. Designed for high-volume bakeries and industrial dough production, it features a digital control panel for precise programming and one-touch operation. Built from stainless steel, powered by pure copper motors with imported belts, it delivers sustained power for heavy kneading. The two-speed gearbox (107/210 rpm) with reverse function allows flexible mixing and easy dough release. Available in four bowl capacities from 80L to 260L. CE certified for safety and reliability.
Shift-on-the-Fly™ 功能可在电机运转时方便、高效地切换速度，无需停止再重启机器。

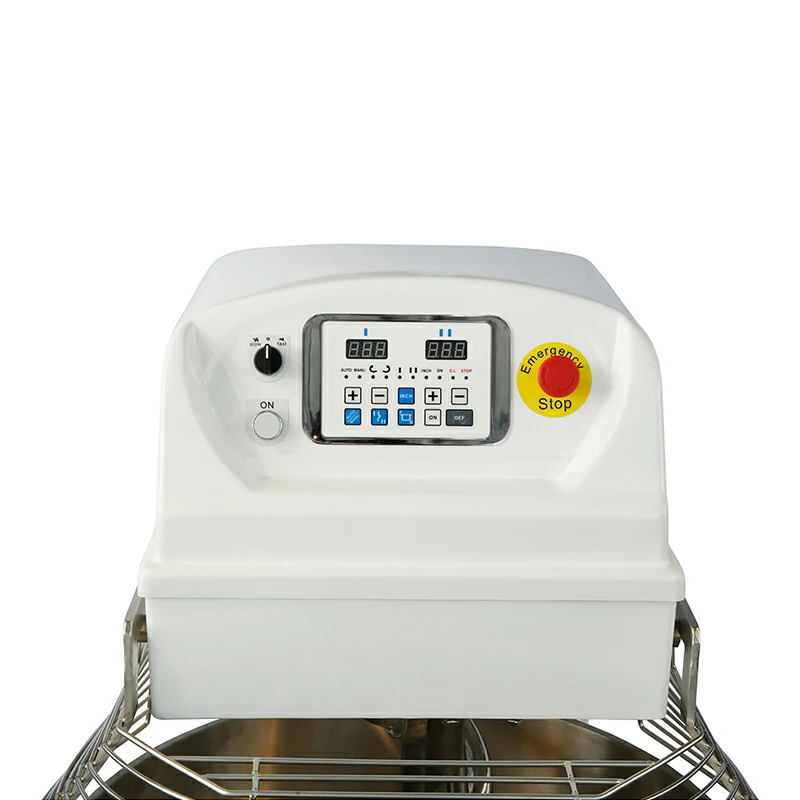

Upgraded computer board enables accurate time and speed settings, programmable cycles, and easy‑to‑read display. One‑touch start improves consistency and reduces operator error.
Two independent high‑torque motors (up to 12kW) provide consistent, energy‑efficient power. Imported belts ensure quiet, smooth transmission and long service life.
Two speeds (107/210 rpm) plus one‑touch reverse help release dough without stopping the machine, improving workflow efficiency and reducing operator fatigue.
Commercial‑grade stainless steel construction resists corrosion and meets food safety standards. Handles up to 100kg of dry flour (260L model) for 24/7 operation.
| 参数 | 80L | 130L | 200L | 260L |
|---|---|---|---|---|
| Volt | 380V | 380V | 380V | 380V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Shaft Speed(r/min) | 107/210 | 107/210 | 107/210 | 107/210 |
| Bowl Speed(r/min) | 16 | 16 | 16 | 16 |
| Power | 3kW | 6kW | 9kW | 12kW |
| Bowl Capacity | 80L | 130L | 200L | 260L |
| Max Flour Capacity | 25kg | 50kg | 75kg | 100kg |
| N.w(KG) | 385 | 464 | 710 | 720 |
| G.w(KG) | 440 | 520 | 774 | 784 |
| Product Size(mm) | 1040*700*1330 | 1220*810*1440 | 1400*1010*1550 | 1400*1010*1550 |
| Package Size(mm) | 1190*800*1500 | 1280*840*1610 | 1430*1050*1710 | 1430*1050*1710 |
